Bull's-Eyes

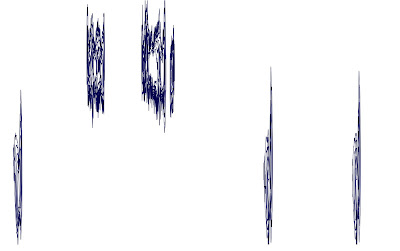

Here are some caffeine peaks (below) and EthoxyEthanol peaks (above). The display is DOSY-like, yet the numerical treatment is a simpler and faster mono-exponential fit. Each column has been processed independently from the rest, and each column yields a different result:
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjVIfVe4IGgWh95mjyvoE0qDNC8xAIHcBoARKGR11kwiAMF6O4OM_djvu66ixtIV69DbbVdEGktq6su1FWO9hmC9eYInefOLYuHIJO4B8vwMO4P2nHObxYxPIkLZwL-7EjhsaI9sw/s400/zero.jpeg)
Now let's apply a Whittaker Smoother, with a small value of lambda (100), along each ROW:
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi1uLLDK-S0OkNytBT0we3bW2GbkzO8IURiZmYL8dntKZ0Z5BWJWWrugD_g_25r1nApr9cqUbhDaEHs9B4ALRnKJZerRSzpO_dGxv4Z6a3IcGDabOOdU6CvtMrXsSzwgza1v3cxJg/s400/100.jpeg)
or a big lambda (500):
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgp-Yhu_WkxewMAhyHRrbk-t4I8qtB4l21vnnPFZA4fQ1v2Z3NWbLBB5YhMrYKchehKQdpnD7yoVrJX4QEB5Rysnf_8LKsYEUrnz_XCHlC8tRDjMI4sOfB23C9xb6z2fSP6h22hqw/s400/500.jpeg)
or a huge value (8000):
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjNs-EpFPPoRV5Abn3skOzemhIcP6mY6cWuc3-kssGoPlwB8ou3GWaZ9CMlBLeOpDCvVsc2DMajOy_RPh1NrKHOpQ18vYst6WUOvt6tJwKnyGULppRcGKST2XBSrSi2BTdUIwY3gA/s400/8000.jpeg)
The smoother averages the results obtained from the different columns. The peaks are perfectly aligned.
